Stereolithography (SLA) 3D printing is a widely used process that employs light-sensitive liquid resin to create high-precision parts. SLA is known for its ability to produce highly detailed and smooth parts, making it ideal for a variety of applications in industries like medical, automotive, consumer goods, and aerospace. Understanding the different SLA materials available can help you choose the best one for your specific needs.

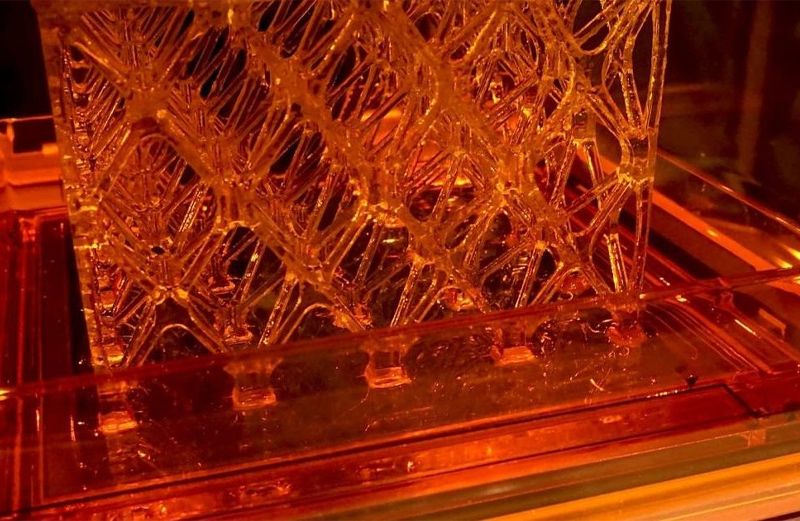

SLA is an additive manufacturing process that uses ultraviolet (UV) light to cure and harden a liquid resin layer by layer, building up a 3D object. The process begins with a 3D model that is sliced into thin layers. A UV laser or projector selectively cures each layer, gradually forming the final part.
SLA is especially valued for its ability to produce high-resolution parts with smooth surface finishes. The material options available for SLA printing are numerous, and selecting the right material depends on the specific properties required for the application.
There are several types of resins available for SLA printing, each designed to meet different functional, aesthetic, and mechanical requirements. Below are some common SLA materials and their typical applications:
Standard resin is the most common type used in SLA printing. It is ideal for producing parts with high accuracy and smooth finishes, making it suitable for prototyping and concept models. Standard resins come in various colors and are often used for making functional parts that do not require significant strength or flexibility.
Tough resin is designed to mimic the strength and impact resistance of ABS plastic. It is suitable for parts that need to endure mechanical stress and wear without cracking or breaking. Common applications include functional prototypes, end-use parts, and tools that require high durability.
Durable resin is formulated to replicate the flexibility and impact resistance of polypropylene. It is an ideal choice for creating parts that need to bend or flex without breaking, such as snap-fit joints or parts that need to withstand repeated motion. Applications include functional testing, consumer products, and parts that experience wear over time.
High-temperature resin is engineered to withstand elevated temperatures, making it suitable for parts that will be exposed to heat or require heat resistance. This resin can endure thermal stress and is used for creating prototypes for automotive or aerospace applications that require testing under high-temperature conditions.
Flexible resin is designed to simulate rubber-like materials. It allows parts to bend, stretch, and compress, making it an ideal choice for creating parts such as gaskets, seals, and soft-touch products. The flexible nature of this resin makes it useful for applications where elasticity is required.
Clear resin is a transparent material used when parts need to be clear or translucent. It is commonly used for making visual prototypes or models where light transmission is important, such as lenses, enclosures, or light guides. Clear resin parts can also be polished to achieve greater transparency.
Castable resin is specifically designed for investment casting. It burns out cleanly during the casting process, leaving no residue. This material is ideal for creating wax-like patterns that can be used in metal casting applications, making it widely used in jewelry, dental, and aerospace industries for casting precision parts.
Bio-compatible resin is used in medical applications where parts must meet regulatory standards for biocompatibility. It is designed to be used for devices that come into contact with the human body, such as surgical guides, dental models, and implants.
When selecting a material for SLA 3D printing, consider the following factors:
Mechanical properties: Does the part need to withstand impact, flex, or high temperatures? Choose a material that matches these requirements (e.g., tough, durable, or high-temperature resins).
Flexibility: If the part needs to be bendable or flexible, materials like flexible resin may be best suited for your project.
Surface finish: SLA printing typically offers a smooth surface finish, but some resins may provide a better finish or be more suitable for post-processing. Clear resins can be polished for a transparent appearance.
Prototyping vs. production: For prototyping, standard resins are often sufficient. However, for functional end-use parts, consider tougher or more specialized materials.
Regulatory requirements: In industries like medical or dental, materials like bio-compatible resins are necessary to meet safety standards.
SLA 3D printing offers several advantages over other additive manufacturing techniques:
High accuracy and detail: SLA provides superior resolution, allowing for the creation of fine details and smooth finishes in parts.
Material variety: There are numerous resins available, enabling a wide range of mechanical, aesthetic, and functional properties to be achieved.
Complex geometries: SLA is ideal for creating complex shapes and intricate designs that would be difficult or impossible to produce with traditional manufacturing methods.
Fast prototyping: SLA allows for rapid prototyping, enabling quick iterations and fast product development cycles.
While SLA has many benefits, there are also some limitations to consider:
Material properties: While SLA provides excellent accuracy, it may not be suitable for high-strength parts that require heavy mechanical loading or long-term durability under extreme conditions.
Post-processing: SLA parts typically require post-processing, such as cleaning and curing, to achieve optimal strength and finish.
Size limitations: SLA printers generally have smaller build volumes compared to other 3D printing technologies, so large parts may need to be printed in sections and assembled.
Stereolithography (SLA) 3D printing is a powerful tool for creating high-precision, detailed parts. The wide range of available materials allows you to tailor the properties of your parts to meet specific requirements for strength, flexibility, transparency, and biocompatibility. Whether you're prototyping or producing end-use components, choosing the right SLA material can ensure the success of your project. Keep in mind the advantages and limitations of each resin, and select the one that best aligns with your design needs and application requirements.
