Overmolding vs Insert Molding: Key Differences and Applications

Overmolding and insert molding are often confused due to their similarities, as both processes fall under the category of injection molding. While they share certain characteristics, they have distinct differences that provide unique advantages in manufacturing. Understanding these differences is crucial for selecting the right process for your project.


Overmolding vs Insert Molding: Key Differences and Applications


From adding ergonomic grips to embedding electronics, both methods offer various benefits. However, to truly leverage these advantages, it's important to understand the specifics of each process. Read on to explore:


  • The basics of overmolding and insert molding

  • How to decide which method is right for your project

  • Common applications of these techniques

  • Using these processes in prototyping

  • Creating insert molded prototypes with 3D printed molds


What is Overmolding?

Overmolding is a multi-step injection molding process where one material is molded over a base component, creating a part with multiple layers. This process is often referred to as two-shot molding because it involves two molding stages.

In the first step, a base component (also called the substrate) is molded and allowed to cure. The base is usually made from plastic. Then, a second layer of material is molded on top of the first layer, creating a cohesive part. This method is commonly used to produce plastic parts with rubber handles, such as toothbrushes. For example, the process would involve forming a plastic handle as the base and adding a rubber layer to improve grip.


Materials Commonly Used in Overmolding

Overmolding can be done with a variety of materials, including:

  • ABS (Acrylonitrile Butadiene Styrene)

  • HDPE (High-density Polyethylene)

  • PEEK (Polyether Ether Ketone)

  • Nylon (Polyamide)

  • PC (Polycarbonate)

  • PE (Polyethylene)

  • PEI (Polyetherimide)

  • PBTR (Polybutylene Terephthalate)

  • PMMA (Acrylic)

  • POM (Polyoxymethylene)

  • PP (Polypropylene)

  • SI (Silicone)

  • TPE (Thermoplastic Elastomers)

  • TPU (Thermoplastic Polyurethane)

  • TPR (Thermoplastic Rubber)


Benefits and Limitations of Overmolding

Overmolding provides several advantages. It allows the production of parts with multiple materials or colors in one shot, which simplifies manufacturing. Additionally, fewer man-hours are needed compared to other methods, and since the part is created in one mold, there's no need for assembly, resulting in a stronger design.


However, overmolding does come with its challenges. The cost of mold creation can be high, especially for complex, two-shot molds. These molds are also expensive to modify, and it can be time-consuming to set up and adjust the machinery. Therefore, overmolding is most cost-effective for large production runs where the initial cost can be spread across many units.


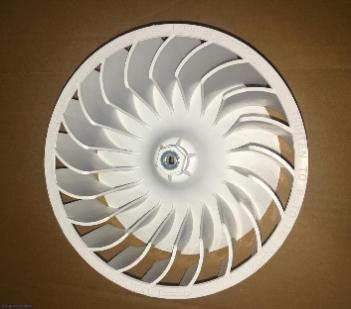

What is Insert Molding?

Insert Molding is another form of injection molding where a pre-existing part, or substrate, is inserted into a mold, and then a secondary material is injected around it. Unlike overmolding, where the base component is created from scratch in the mold, insert molding uses an existing component that is placed in the mold before the injection process begins.

Insert molding is commonly used to add plastic coatings around metal parts, such as attaching plastic handles to metal tools like screwdrivers. It can also be used to create products like insulated pipes, embedded electronics, and wiring components.


Materials Commonly Used in Insert Molding

Similar to overmolding, insert molding utilizes various materials, including:

  • ABS, Nylon, PEEK, and other thermoplastics

  • Metal substrates (for the internal part)


Benefits and Limitations of Insert Molding

Insert molding offers the benefit of combining different materials into a single part, often improving strength and durability. It's particularly effective when embedding electronic components or creating protective coatings for parts. For example, insert molding is used for producing plastic casings for medical devices, offering both protection and sterilizability.

Despite its advantages, insert molding shares some limitations with overmolding. Prototyping can be challenging, and the molds require precise design to ensure proper alignment of the substrate within the mold. Additionally, resin-based 3D printing can be helpful for testing inserts before moving to full-scale production.


Choosing Between Overmolding and Insert Molding

Use the following guidelines to determine which method suits your project:

Choose Overmolding When:

  • The finished part is made of thermoplastics or rubber.

  • You want to create a design with multiple layers, materials, or colors.

  • You will be molding both the substrate and the second layer in the same process.

  • You do not need to disassemble the finished part.

Choose Insert Molding When:

  • You are working with a pre-existing substrate.

  • The substrate is made from metal, wires, or electronic parts.

  • You need the final product to be one solid, seamless piece.


Applications of Overmolding and Insert Molding

These molding processes are widely used in various industries:

Consumer Goods

Overmolding is commonly used to manufacture plastic products with multi-colored designs, such as toothbrushes, phone cases, and storage containers. It is also used in products like makeup brushes and furniture.

Automotive Industry

Insert molding is frequently used for automotive parts that combine metal and plastic, such as gears and sensors. Overmolding is used to create durable interior parts, like handles, knobs, and control panels.

Medical Industry

Insert and overmolding techniques are commonly used in medical devices, where plastics are used to protect sensitive components or ensure sterilizability. Examples include defibrillators, pacemakers, and medical cables.

Electrical Industry

Insert molding is used to make electrical components safer and more durable, such as coating wires with rubber or creating cable assemblies that need to be insulated and weatherproofed.

Beauty Industry

Both overmolding and insert molding are used to manufacture cosmetic packaging, allowing for multi-colored designs and unique textures. Products like perfume bottles, compacts, and makeup tools are often made using these techniques.


Prototyping with Overmolding, Insert Molding, and 3D Printing

Prototyping is essential for product development. By combining overmolding and insert molding with 3D printing, designers can save both time and money during the prototyping phase. For example, by 3D printing molds or parts, you can test designs more quickly and avoid the costs of traditional mold-making.


Step-by-Step Guide to Insert Molding with 3D Printed Molds

Follow this guide to create a prototype using insert molding and 3D printing:

  • Step 1: Print the mold using an industrial 3D printer.

  • Step 2: Cure and clean the mold.

  • Step 3: Prepare silicone and apply mold release if necessary.

  • Step 4: Insert hardware, align it properly, and compress the mold.

  • Step 5: Inject the silicone into the mold and wait for it to cure.

  • Step 6: Demold the prototype and trim any excess material.


Using these steps, you can quickly create insert molded prototypes with 3D printed molds, making prototyping faster and more cost-efficient.
